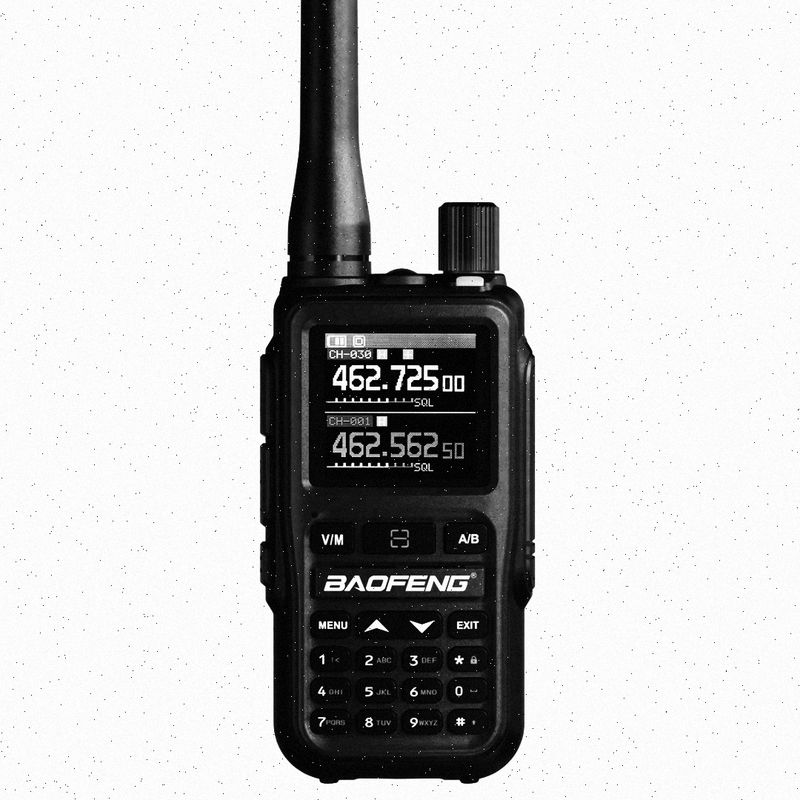

Baofeng UV-5G Mini GMRS Radio
The smallest GMRS HT. Put a stubby antenna on it and you can just about lose it in a jeans pocket.
Technical Specifications
- Type
- GMRS (Part 95E)
- Power Output
- 5W High / 2W Low
- Channels
- 999
- Battery
- Li-ion (7.4V)
- Charging
- USB-C
- Antenna Connector
- SMA-F
Features
- Repeater Capable
- Noaa Weather
- Bluetooth Programming
- Usb C Charging
- Chirp Compatible
CHIRP Programming
CHIRP is a free, open-source tool for programming radios from a computer. It supports hundreds of radio models and lets you manage channels, power levels, tones, and other settings.
- Select in CHIRP
- Baofeng → UV-5G Mini
- Programming Cable
- USB programming cable (Kenwood K1)
See My Recommended Baseline GMRS Radio Config for a ready-to-import channel plan.
Supported Frequencies
| Band | Mode | Range (MHz) | Modulation |
|---|---|---|---|
| GMRS | TX/RX | 462.5500-467.7250 | FM |
| FM Broadcast | RX | 76-108 | FM |
| Airband | RX | 108-136 | AM |
| VHF | RX | 136-174 | FM |
| UHF | RX | 400-520 | FM |
| NOAA | RX | Pre-programmed | FM |
Regulatory Information
FCC ID: 2AJGM-5GMINI
