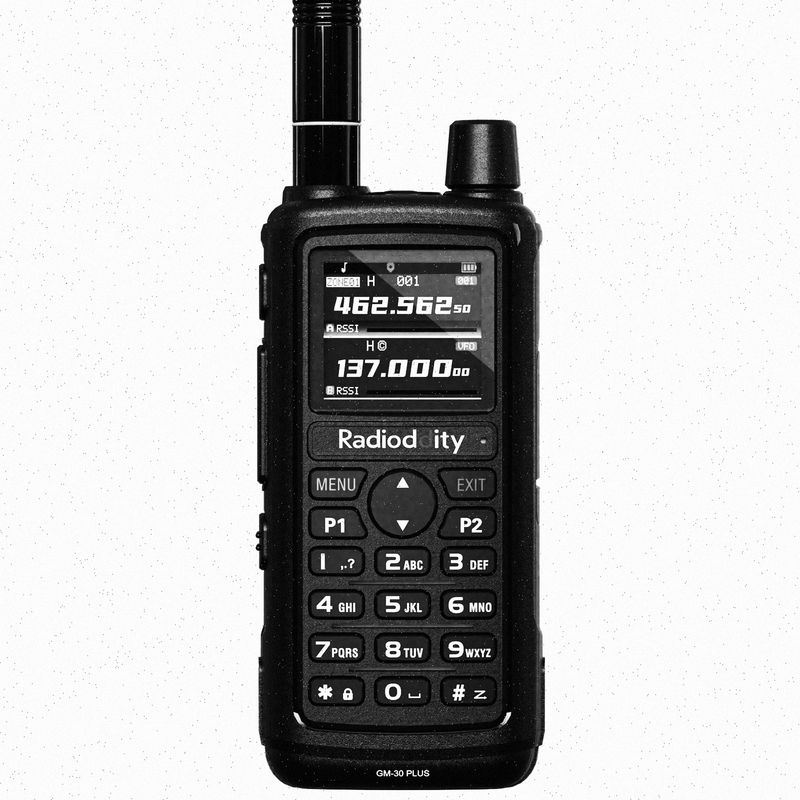

Radioddity GM-30 Plus GMRS Radio
Technical Specifications
- Type
- GMRS (Part 95E)
- Power Output
- 5W High / 0.5W Low
- Channels
- 1000
- Battery
- Li-ion 2500mAh
- Charging
- USB-C
- Antenna Connector
- SMA-F
Features
- Repeater Capable
- Noaa Weather
- Gps
- Usb C Charging
- Chirp Compatible
CHIRP Programming
CHIRP is a free, open-source tool for programming radios from a computer. It supports hundreds of radio models and lets you manage channels, power levels, tones, and other settings.
- Select in CHIRP
- Radioddity → GM-30 Plus
- Programming Cable
- USB programming cable (Kenwood K1)
See My Recommended Baseline GMRS Radio Config for a ready-to-import channel plan.
See all CHIRP-compatible radios →
Added to CHIRP by WRCK692
I added this radio to CHIRP. Here's how.
Supported Frequencies
| Band | Mode | Range (MHz) | Modulation |
|---|---|---|---|
| GMRS | TX/RX | 462-467 | FM |
| FM Broadcast | RX | 65-108 | FM |
| Airband | RX | 108-136 | AM |
| VHF | RX | 136-174 | FM |
| UHF | RX | 400-470 | FM |
| NOAA | RX | Pre-programmed | FM |
Regulatory Information
FCC ID: 2AN62-GM30PLUS
